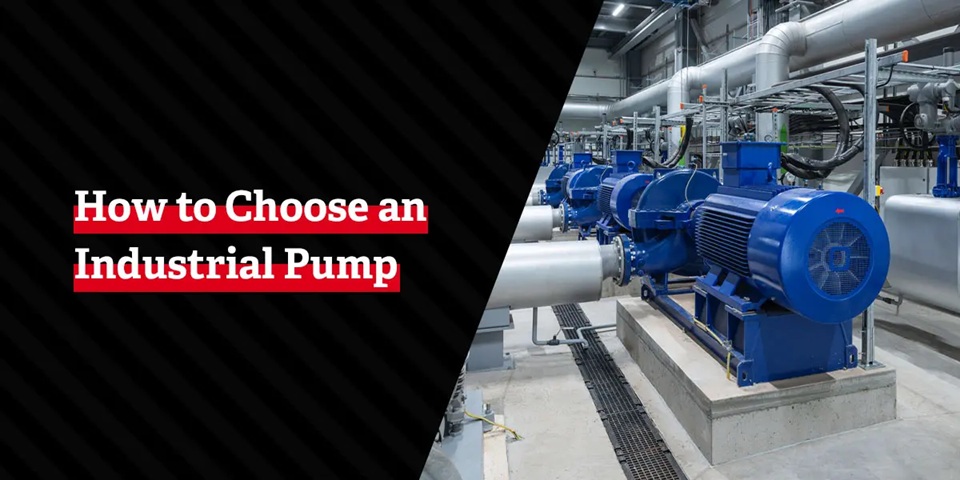

Industrial pumps - Detailed instructions on how to choose

1. Introduction: The Role of Industrial Pumps Industrial pumps are indispensable components in many production and liquid-handling systems. Whether it is for water supply, wastewater treatment, chemical transfer, or applications in HVAC and fire-fighting systems, these pumps are engineered to meet high-performance, safe, and efficient operating requirements. In the context of Industry 4.0, selecting and utilizing the appropriate pump becomes even more critical for optimizing energy consumption and ensuring the continuous operation of production systems.

2. Operating Principle and Basic Configuration

2.1. Operating Principle Industrial pumps primarily operate based on a mechanical drive principle to move liquid from a lower elevation to a higher one or to generate a continuous flow. By means of centrifugal force or impulse, the pump converts mechanical energy from the motor into hydraulic pressure, which then propels the liquid through piping systems and other processing components.

2.2. Main Components

• Pump Casing: This is the external housing of the pump, responsible for directing the fluid flow and developing the necessary pressure. The casing must be designed to resist pressure, combat corrosion, and allow for easy disassembly for maintenance.

• Impeller: Often regarded as the “heart” of the pump, the impeller generates the centrifugal force required to move fluid outward from the center. Depending on the operational requirements, impellers may be of various types—closed, open, or semi-open—each offering specific advantages and disadvantages for handling different fluid viscosities and properties.

• Pump Shaft: Connecting the motor to the impeller, the pump shaft transmits rotational motion. It must be manufactured from robust materials to minimize wear and ensure stability during operation.

• Auxiliary Assembly: This includes bearings and support brackets that help reduce friction and maintain precise alignment of the pump shaft. These components also aid in noise reduction and improve overall operational stability.

• Mechanical Seal / Gland Packing: An essential component designed to prevent fluid leakage between the pump casing and the shaft. The selection of the seal or packing material is based on the chemical properties of the fluid (e.g., chemicals, solvents, water, etc.) and the operating environment.

• Inlet and Outlet Ports: The design of these ports ensures efficient fluid admission and discharge, thereby minimizing energy losses and maintaining a continuous flow.

• Motor: The motor supplies the mechanical energy required for pump operation. Depending on the pump’s scale and application, motor power can range from a few kilowatts to several tens of kilowatts.

These components together form an integrated system that enables the pump to operate efficiently under even the most demanding industrial conditions.

3. Types of Industrial Pumps In practice, industrial pumps come in various types, each suitable for specific applications and fluids:

• Centrifugal Pumps: These are the most common type of pump used in industry. Based on centrifugal force, centrifugal pumps are widely employed for pumping water, chemical solutions, and in HVAC systems.

• Submersible Pumps: Designed for underwater operation, these pumps are typically used in applications involving clean water, wastewater, or instances where noise reduction and a compact discharge are required.

• Chemical Pumps: Specifically engineered with corrosion-resistant materials (such as stainless steel, cast iron, aluminum alloys, or non-metallic materials like Polypropylene and PTFE) to handle highly corrosive solvents and chemicals.

• Viscous Oil Pumps and Pumps for the Oil & Gas Industry: These pumps are designed to withstand high pressures and operate continuously with high-viscosity fluids, ensuring a stable pumping process even in harsh environments.

4. Technical Factors and Design Standards When selecting and designing an industrial pump, the following factors are critically important:

• Technical Specifications:

  • Flow Rate: Typically measured in m³/h, this parameter indicates the pump’s capacity to move fluid.

  • Pressure: Defined by the maximum total head the pump can achieve, which determines both the safety and the efficiency of the pump.

  • Rotational Speed: The speed at which the impeller operates, directly impacting pump performance and energy consumption.

  • Operating Temperature: Industrial pumps must be capable of withstanding harsh temperature conditions (up to +90°C or higher, depending on the application).

  • Operational Efficiency: Designed to optimize the conversion of mechanical energy into hydraulic pressure, thereby minimizing energy loss and reducing operating costs.

• Construction Materials: The choice of materials not only affects production cost but also impacts durability, corrosion resistance, and the ability to withstand harsh operating environments. Common materials include:

  • Cast Iron and Stainless Steel: Known for high durability and corrosion resistance, suitable for applications requiring maximum safety.

  • Aluminum Alloys and High-Grade Alloys: Employed in pumps where a lightweight design is essential without compromising on strength and durability.

  • Engineering Plastics (PP, PTFE) and Composite Materials: Used in chemical pumps to ensure resistance against acid or alkali attacks.

• Motor and Power Supply Capability: The motor power for industrial pumps usually ranges from 1.5 kW to 37 kW, depending on the required flow rate and pressure. The integration between the motor and the drive components must ensure high efficiency under all operating conditions.

These technical requirements ensure that the pump not only achieves optimal performance but also operates safely, conserves energy, and maintains long-term durability.

5. Advanced Technology and Practical Applications

5.1. Modern Technology Recent technological advancements have significantly enhanced industrial pumps:

• Integration of IoT and Smart Sensors: Automated control systems and sensors enable real-time monitoring of temperature, pressure, flow rate, and vibration. This facilitates the early detection of malfunctions, optimizes operational performance, and minimizes the risk of unexpected downtime.

• Advanced Control Systems: The incorporation of control software and SCADA systems allows operators to remotely monitor and adjust pump operations, thus ensuring both efficiency and safety.

5.2. Practical Applications Industrial pumps are employed in numerous fields, such as:

• Water and Wastewater Treatment: Ensuring the supply of clean water and treating wastewater in accordance with environmental standards for urban and industrial zones.

• HVAC Systems (Heating, Ventilation, and Air Conditioning): Used for circulating cooling water and maintaining temperature stability in buildings and manufacturing facilities.

• Chemical and Oil & Gas Industries: Pumps are specifically designed to transport solvents, corrosive chemicals, and viscous oils, ensuring safety and operational efficiency in production processes.

• Fire-Fighting Systems: Provide the necessary pressure and flow rate required by fire suppression systems, thereby reducing risk and enhancing infrastructure safety.

Thanks to their versatility and high customization potential, industrial pumps represent the optimal solution for many modern production and liquid-handling processes.

6. Maintenance Procedures and Troubleshooting

To ensure stable operation and extend the pump’s service life, regular maintenance is absolutely essential:

• Regular Maintenance:

  • Inspect moving parts such as bearings, the pump shaft, and the impeller.

  • Clean the system by removing deposits and scaling that can reduce efficiency.

  • Replace worn components (such as the mechanical seal or gland packing) to prevent fluid leakage and to ensure stable operating pressure.

• Troubleshooting:

  • Detect early signs of vibration, abnormal noise, or changes in performance.

  • Implement timely corrective actions, ranging from lubrication and realignment of components to replacing parts as needed.

A properly conducted maintenance procedure not only prevents hazardous incidents but also ensures optimal performance and long-term operational cost savings.

7. Detailed Guidelines on How to Select an Industrial Pump

These guidelines will help you make an optimal decision based on various technical factors as well as specific application conditions.

7.1. Determine Requirements and Applications

• Usage Purpose: First, clarify the primary function of the pump—whether it is for pumping clean water, treating wastewater, transferring chemicals, lubricating oils, etc. Each application imposes different requirements regarding the pump type (centrifugal, submersible, chemical, etc.) and the necessary resistance to corrosion, temperature, and viscosity of the fluid to be pumped.

• Fluid Properties: Identifying characteristics such as viscosity, corrosiveness, and the presence of deposits or particulates will help you select a pump with the appropriate structure and materials—especially concerning the impeller and the sealing system.

7.2. Technical Factors to Consider

7.2.1. Power and Flow Rate

• Pump Power: Determine the appropriate power rating (in watts or kW) in accordance with the volume of fluid to be pumped. The pump must have sufficient capacity to move the fluid without overloading, while delivering stable operational performance.

• Flow Rate: Measured in m³/h or L/s, a higher flow rate necessitates that the pump deliver sufficient pressure and an appropriate volume to meet the system’s requirements. Accurate calculation of the flow rate ensures there is no loss of momentum during operation.

7.2.2. Head (Pressure)

• Head: This is the total elevation (including both static head and the losses due to piping friction) that the fluid must be raised. The pump must be capable of generating a sufficient pressure differential to achieve the required head. This calculation is critical to ensure a continuous and stable flow.

7.2.3. Construction Materials and Operating Environment

• Materials: Choose a pump constructed from materials that are suitable—such as cast iron, stainless steel, aluminum alloys, or engineering plastics—depending on the properties of the fluid and the operating environment. Critical parts, such as the mechanical seal, should be of high quality to prevent leakage and withstand corrosive conditions.

• Operating Environment: Consider factors such as temperature, humidity, dust, and potential chemical corrosiveness when making your selection. These conditions will determine the pump’s durability and the long-term maintenance costs.

7.2.4. Operational Efficiency and Compliance with Standards

• Economic Efficiency: High-efficiency pumps help reduce energy consumption and cutting operating costs. Select a pump that converts mechanical energy to hydraulic pressure with minimal losses.

• Technical Standards: Ensure the pump meets either domestic or international standards (for example, Vietnamese standards or ISO) to guarantee safe and efficient operation.

7.2.5. Brand, Cost, and Technical Support

• Brand and After-Sales Service: Choosing pumps from reputable manufacturers gives you confidence in product quality as well as easier access to maintenance and spare parts support.

• Price: Compare the initial investment, operating, and maintenance costs over the long term to reach an economically balanced decision between cost and performance.

7.3. Summary of Key Factors

7.4. Tips for Selecting an Industrial Pump

• Overall Evaluation: Consider all technical and environmental factors simultaneously to ensure that the pump will operate stably and remain durable.

• Consult Experts: In cases of complex requirements or if your system has specific conditions, seek advice from experts or reputable suppliers.

• Comparison and Evaluation: Don’t base your decision solely on the initial price; take into account the overall costs (investment, operation, maintenance) and assess the pump’s performance based on calculated technical parameters.

8. Conclusion

Industrial pumps are the lifeblood of many modern fluid-handling and production systems. A thorough understanding of their construction, operating principles, pump types, and technical standards enables users—from design engineers to operations managers—to select the optimal solution, implement proper maintenance, and continually improve performance. The integration of automation technology and smart sensors has ushered in a new era in which pumps not only operate efficiently but also possess self-monitoring and self-adjusting capabilities to meet the industry's stringent demands.

Now that we have covered everything about industrial pumps, if you are looking for a pump, QTE Technologies might be your one-stop destination for pumps and accessories. We are an international MRO supplier proud to serve customers in more than 180 countries. Established in 2010, we provide over 1 million products for every industry and engineering discipline. Additionally, you can contact us anytime via 24×7 chat support, telephone, WhatsApp, or email. Discover what our valued customers have to say about our services on our dedicated review page.
