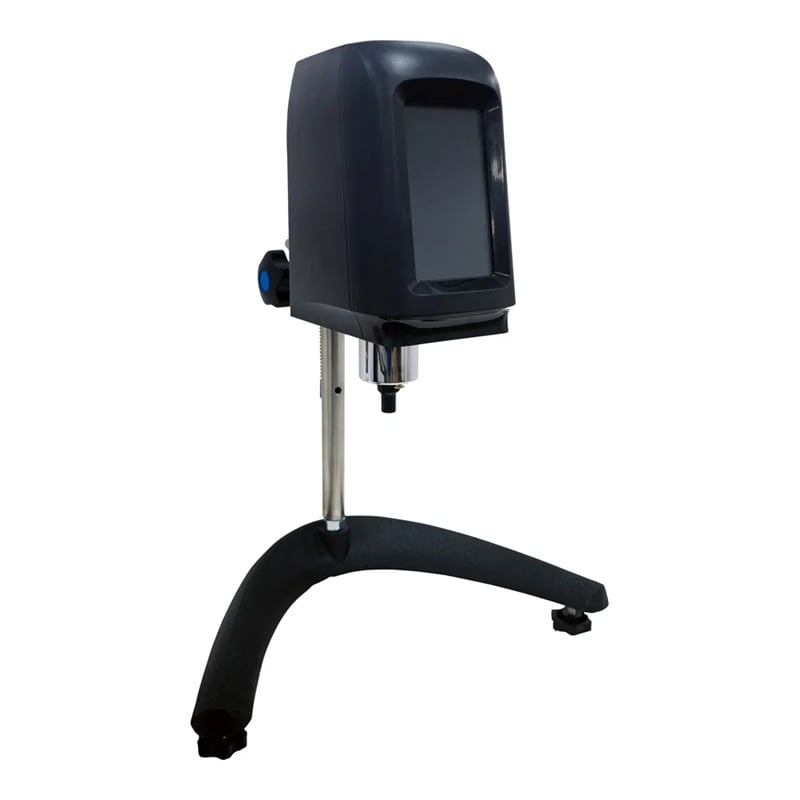

Brookfield XDV2THBTJ00U00 Viscometer (0.1 - 200rpm, 800 - 320,000,000mPa.s)

Manufaturer:	Brookfield
Model:	XDV2THBTJ00U00

Product code

1-80-56475

Price 11,438.40 USD

Add to cart Buy now

*This is standard price, please click "Request a quote" to see the actual price.

*You can't find the product you need, please send us the picture/specifications/model/product code and quantity you need to email: info@qtetech.com.vn. We will find it for you.

Description

Provided with touch panel realizing multiple functions and usability.　　
Switchable in 0.1 rpm increments between 0.1～9.9 rpm, and 1 rpm increments between 10～200 rpm allowing fine adjustment of Rotation per minute.　　
Allows easy control and data gathering and saving on PC if used with Rheocalc T（sold separately）
Configurable speed r.p.m. : 0.1 - 200rpm (configurable number of stage: 290)
Viscosity measurement accuracy: ±1.0% (F.S.)
Viscosity reproducibility: ±0.2% (F.S.)
Temperature detection range: -100 to +300℃
Main display items: Viscosity value, torque value, shear speed, shear stress, temperature, spindle, etc.
Output: USB port
Power supply: AC90 - 260V 50/60Hz
Power consumption: 150W
Main unit size: 360 x 350 x 590mm (maximum)
Weight: Approx 9kg
For high viscosity
Measurement range (mPa・s): 800 - 320,000,000
Set content: Body, Stand G type, Standard spindle set (LV-1 - 4/1 piece each, RV, HA, HB-2 - 7/1 piece each), Power cable (3P plug), Resistance thermometer RTD, Guard leg (LVDV, RVDV only), Screen cloth, USB memory, Stylus, Cap, Carry case, Software (PG flash software)
Model number: HBDV2T
