Casters are the unsung heroes of mobility in industries ranging from healthcare and manufacturing to retail and hospitality. A well-chosen caster not only bears heavy loads and reduces operator fatigue but also safeguards floors and optimizes workflow. This guide dives deep into caster anatomy, explores the myriad types and materials, outlines key selection criteria, and shares best practices for use and maintenance.
1. Anatomy of a Caster
Understanding each component helps you troubleshoot problems and make informed purchases.
-
Wheel/Tread: Contacts the floor; made of rubber, polyurethane, nylon, phenolic, or steel.
-
Core: The wheel’s internal structure—usually plastic, metal, or composite.
-
Bearing Assembly: Reduces rolling resistance; options include plain bearings, roller bearings, and precision ball bearings.
-
Fork/Bracket: Holds the wheel; may be rigid (fixed) or swivel (rotatable).
-
Mounting Hardware: Plate (bolted) or stem (inserted); sometimes welded for specialty applications.
-
Brake/Lock: Optional, stops wheel rotation and/or swivel motion.

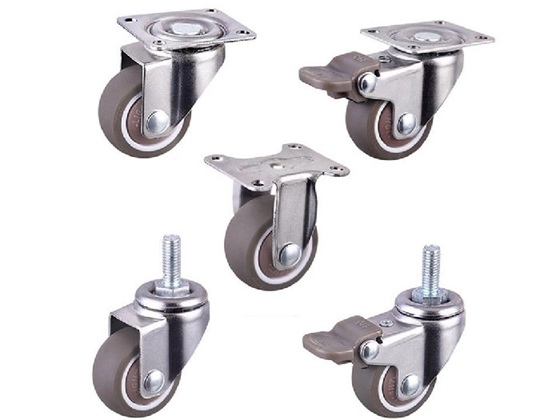

2. Major Caster Types
| Type | Description | Pros | Cons |
|---|---|---|---|
| Rigid | Fixed orientation; rolls straight ahead | High stability, load capacity | No lateral maneuverability |
| Swivel | Rotates 360° at fork top; allows multi-directional movement | Exceptional maneuverability | Potential for caster flutter |
| Swivel-Lock | Swivel with a locking mechanism on wheel and/or fork | Combines mobility with stability | Heavier, slightly more costly |
| Brake | Foot-activated lock on wheel tread | Stops unwanted rolling | Adds complexity |
| Pneumatic | Air-filled rubber tires | Absorbs shock, smooth travel | Requires inflation checks |
| Specialty | Dampened (vibration control), conductive (ESD), low-pro, hi-temperature, etc. | Tailored to niche environments | Often premium-priced |
Choosing the right wheel material is crucial for floor protection, noise control, and chemical resistance.
| Material | Hardness (Shore A/D) | Floor Friendliness | Noise Level | Chemical/Oil Resistance | Typical Use Cases |
|---|---|---|---|---|---|
| Rubber | 40–80 A | Excellent | Low | Fair | Office chairs, medium loads |
| Polyurethane | 85–95 A | Good | Low–Medium | Excellent | Hospital equipment, carts |
| Nylon/Polypropylene | – | Fair | High | Good | Cleanrooms, conveyor systems |
| Phenolic | – | Poor | High | Excellent (heat) | Ovens, high-temp environments |
| Steel | – | Very poor | Very High | Excellent | Heavy machinery, tarred floors |
| Pneumatic Rubber | – | Good | Low | Low | Outdoor dollies, garden carts |
-
Top Plate: Square or rectangular plate bolted to equipment; offers maximum stability and load capacity.
-
Stem: Threaded, grip-ring, or expansion stem that inserts into tubes or sockets; great for light to medium loads and retrofits.
-
Weld-On: Permanently welded to a structure; used in harsh environments where bolts could loosen.
5. Load Capacity & Wheel Diameter
-
Static Load: The weight a caster can hold at rest.
-
Dynamic Load: The weight under movement—typically about 60–80% of static capacity to account for shock loads.
-
Rule of Thumb: Divide total load (including equipment and expected payload) by the number of casters. Apply a safety factor of 1.25–1.5.
-
Wheel Diameter: Larger wheels roll over obstacles and thresholds more easily, reducing required push/pull force.
6. Environmental and Operational Considerations
-
Floor Surface: Hard floors favor softer treads to protect finishes; uneven or rough surfaces may need pneumatic wheels.
-
Temperature Extremes: Phenolic wheels excel in ovens, while rubber can harden in the cold.
-
Chemical Exposure: Polyurethane resists oils, solvents, and many acids; nylon degrades in strong acids.
-
Cleanroom/Food Grade: Stainless hardware and non-linting wheels; easy to wash down.
-
Noise Restrictions: Polyurethane and rubber minimize noise; steel and hard nylon are loud.
7. Applications and Use Cases
-
Medical Carts & Hospital Beds: Swivel casters with precision bearings and PU treads for silent, smooth motion and easy braking.
-
Material Handling & Pallet Jacks: Rigid and heavy-duty swivel casters with steel cores and roller bearings for high loads.
-
Office Furniture: Small-diameter swivel casters with nylon or rubber to protect floors and enable 360° maneuvering.
-
Retail Displays: Locking swivel casters that blend into product design yet lock securely for stability.
-
Outdoor Equipment: Pneumatic casters to absorb terrain irregularities.
8. Caster Selection Checklist
-
Calculate total and per-caster loads (static & dynamic).
-
Match wheel material to floor, temperature, and chemical conditions.
-
Choose swivel vs. rigid based on maneuverability needs.
-
Verify mounting style compatibility (plate vs. stem).
-
Consider brakes or swivel-locks for safety zones.
-
Factor in wheel diameter for threshold crossing.
-
Check maintenance intervals and spare-parts availability.
9. Maintenance Best Practices
-
Inspect Monthly: Look for worn tread, cracks, or flat spots.
-
Lubricate Bearings: Use recommended grease; avoid over-lubrication which attracts debris.
-
Tighten Hardware: Torque mounting bolts per manufacturer specs to prevent wobble.
-
Clean Regularly: Remove debris wrapped around wheels or axles.
-
Replace Proactively: Swap out casters that show more than 10% diameter loss or persistent noise.
10. Innovations & Future Trends
-
Smart Casters: Embedded sensors relay load data, temperature, and usage history to maintenance systems.
-
Advanced Materials: Bio-based polyurethanes and graphene-enhanced cores for ultra-lightweight, high-strength wheels.
-
3D-Printed Custom Casters: Rapid prototyping for unique load profiles or non-standard mounting geometries.
-
Active Dampening: Micro-shock absorbers in the fork to protect sensitive payloads (e.g., lab instruments).
Conclusion
Choosing the right caster is a balance of load capacity, environmental resilience, maneuverability, and maintenance ease. A carefully selected caster boosts productivity, extends equipment life, and safeguards floors and operators alike. Whether you’re outfitting a hospital room, optimizing a factory line, or upgrading your office furniture, this guide equips you to make smart, lasting caster decisions.
