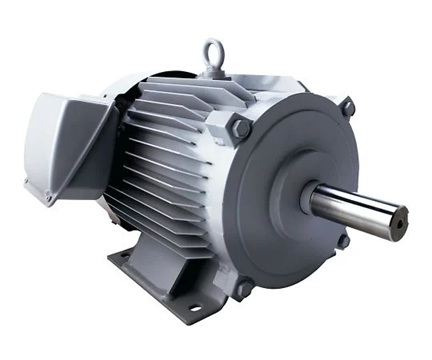

TOSHIBA FBKK21E-4P-0.75KW High-efficiency motors Premium Gold motor (0.75KW, 4 poles)

Manufaturer:	TOSHIBA
Model:	FBKK21E-4P-0.75KW

Product code

111-59772

Price 523.88 USD

Add to cart Buy now

*This is standard price, please click "Request a quote" to see the actual price.

*You can't find the product you need, please send us the picture/specifications/model/product code and quantity you need to email: info@qtetech.com.vn. We will find it for you.

Description

Compliant with the Top Runner standard, and also compatible with IE3, which is a domestic power supply 3 rating.
The standard specification is 230V-60Hz, which complies with US efficiency regulations.
Mounting compatibility is ensured with the same frame number as our standard motor.
All models use heat resistance class 155 (F) (temperature rise B rise), further improving reliability.
It can also be mounted on the top of the terminal box.
Output (kW): 0.75
Horsepower (HP): 1
Frame number: 80M
Height to shaft (mm): 80
Mounting pitch (mm) A x B: 130 x 165
Shaft diameter (mm): 19
Number of poles: 4
Country of manufacture: China
Power supply: 200/200/220/230V-50/60/60/60Hz
IE3 efficiency
Fully enclosed fan type
leg-mounted
Number of poles: 4
Country of Origin: China
Code number: 768-7940
