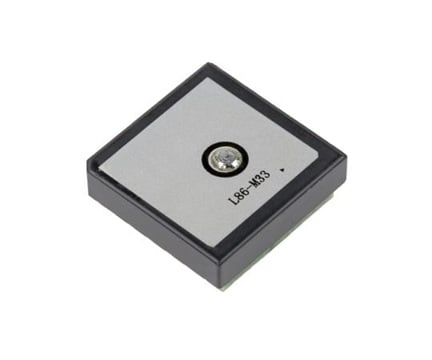

Quectel L86-M33 GPS Receiver

Manufaturer:	Quectel
Model:	L86-M33

Product code

111-68156

Price: Contact

Add to cart Buy now

*The above price is Standard Price, Kindly click on Request a quote to unlock the Best Price and Delivery Date. Our expert consulting team is always ready to assist you.

*Order Process: 1. Request a quote ⇒ 2. Quote via Email ⇒ 3. Proforma Invoice ⇒ 4. Payment ⇒ 5. Delivery and Invoice.

*We deliver to your doorstep under DAP terms. Customs clearance is for your account.

*You can't find the product you need, please send us the picture/specifications/model/product code and quantity you need to email: [email protected]. We will find it for you.

*Review us here: Review Now

Description

L86 GNSS (Global Navigation Satellite System) Module with Patch Antenna
The L86 is a compact GNSS module with built-in patch mode.
The high performance MTK positioning engine provides high levels of sensitivity, accuracy and TTFF (time to solution), while the smallest footprint lead-free package offers the lowest power consumption.
Equipped with 66 search channels and 22 tracking channels, the L86 can acquire and track satellites in minimal time, even indoors with low signal levels.
Multi-GNSS engine for GPS, GLONASS, and QZSS Built-in patch antenna: 18.4 x 18.4 x 4 mm Ultra-small size: 16 x 16 x 6.45 mm Automatic antenna switching function Supports short circuit protection and antenna detection Built-in LNA for optimal sensitivity EASY™ is an advanced AGPS technology without external memory Ultra-low power consumption (tracking mode): 20 mA AlwaysLocate™ is an intelligent controller in periodic mode
Quantity: 1 piece
Supported bus interfaces: UART
Number of channels: 33 (Tracking), 99 (Acquisition)
Acquisition sensitivity: -148dBm
Tracking sensitivity: -165dBm
Dimensions: 18.4 x 18.4 x 6.45 mm
Height: 6.45mm
Length: 18.4mm
Operating temperature mAx: +85°C
Operating temperature Min: -40°C
Width: 18.4mm
RoHS Compliance Status: Compliant
Code number: 908-4114
