AS ONE 2-9518-01 LittleMilling1 Milling Machine

Manufaturer:	AS ONE/ Others
Model:	LittleMilling1

Product code

111-35017

Price 1,836.44 USD

Add to cart Buy now

*The above price is Standard Price, Kindly click on Request a quote to unlock the Best Price and Delivery Date. Our expert consulting team is always ready to assist you.

*Order Process: 1. Request a quote ⇒ 2. Quote via Email ⇒ 3. Proforma Invoice ⇒ 4. Payment ⇒ 5. Delivery and Invoice.

*You can't find the product you need, please send us the picture/specifications/model/product code and quantity you need to email: [email protected]. We will find it for you.

*Review us here: Review Now

Description

Size (mm): 355 x 420 x 590 - 730
Spindle: MT‐2
Milling head up or down: 220mm
Rotation speed (high low switching): High 100 - 2000rpm, low 100 - 1000rpm
Distance to table: 270mm
Column slope: ±45°
Table size: 240 x 145mm
Feed handle (in all directions): 0.025mm/scale, 80 scales/rotation
Fine feed: 0.05mm/scale, 1.8mm/rotation
Power supply: AC100V 50/60Hz 150W
Weight: 40kg
Accessories: Drill chuck (mounted in body), chuck key, clamp set (10 pieces), T slot nut
*Please contact with us for byte single item or other optional accessory separately.
Model number: Little Milling1

Package size：410×500×610 mm　45.7 kg

Genuine commitment

Flexible payment

Dedicated and free support

Domestic and international delivery

Always best price

AS ONE 2-9518-01 LittleMilling1 Milling Machine

Description

You may like

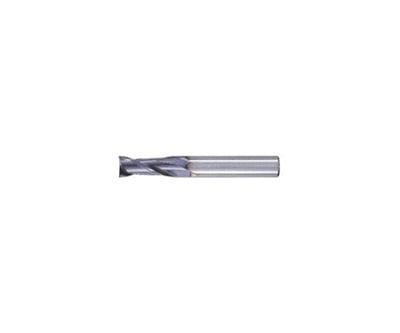

NACHI 2AGEM12 AG Mill 2-flute Medium

SANDVIK TPMN220412 Tips for Milling Cutter (set (10pcs))

Okazaki Seiko SCT060X030 Side Cutter (φ60 x 3ｔmm, Shaft Hole φ25.4mm)

DIJET INDUSTRIAL AL-SEES2080-R10 Solid Radius End Mill for Aluminum Machining (2-blade, Regular Blade Length, 8.0mm R1.0)

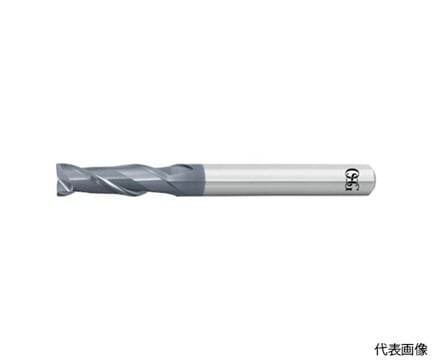

OSG WXL-3D-DE-3 Carbide Endmill (2 Blades, 3.0 D Blade length, WXL, Φ3 × Blade Length 9mm)

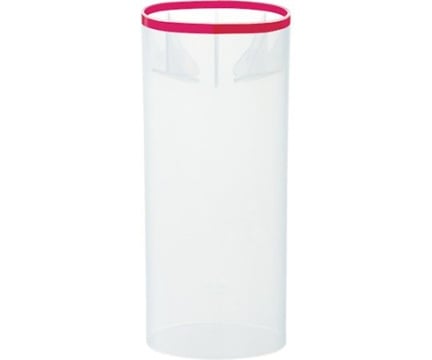

TRUSCO NAKAYAMA AMS-55L Endmill Protection Cap (Shaft diameter 55mm x Length 190mm)

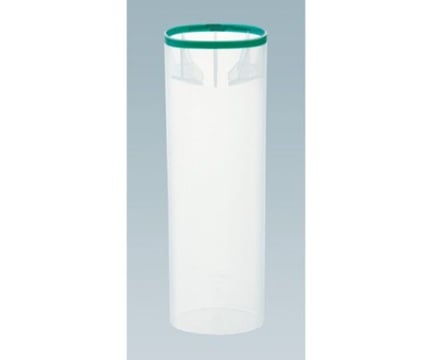

TRUSCO NAKAYAMA AMS-42L Endmill Protection Cap (Shaft diameter 42mm x Length 190mm)

TRUSCO NAKAYAMA AMS-32L Endmill Protection Cap (Shaft diameter 32mm x Length 150mm)

TRUSCO NAKAYAMA AMS-25L Endmill Protection Cap (Shaft diameter 25mm x Length 117mm)

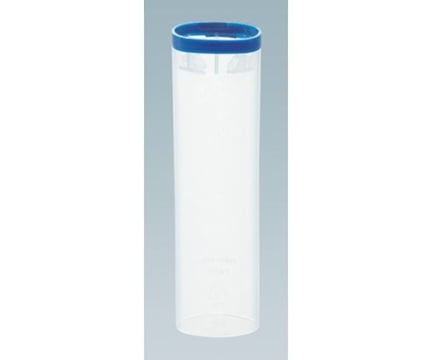

TRUSCO NAKAYAMA AMS-20L Endmill Protection Cap (Shaft diameter 20mm x Length 110mm, 5 Pieces)

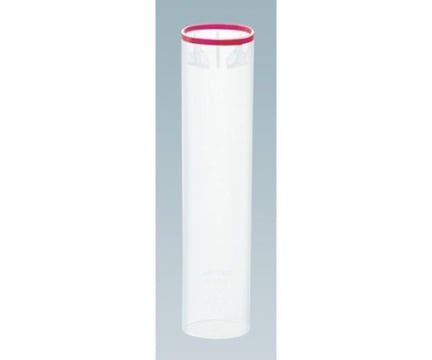

TRUSCO NAKAYAMA AMS-16L Endmill Protection Cap (Shaft diameter 16mm x Length 110mm, 5 Pieces)

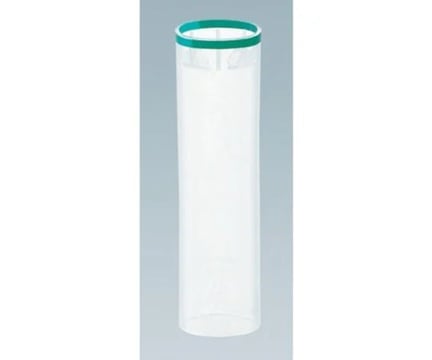

TRUSCO NAKAYAMA AMS-12L Endmill Protection Cap (Shaft diameter 12mm x Length 70mm, 10 Pieces)
